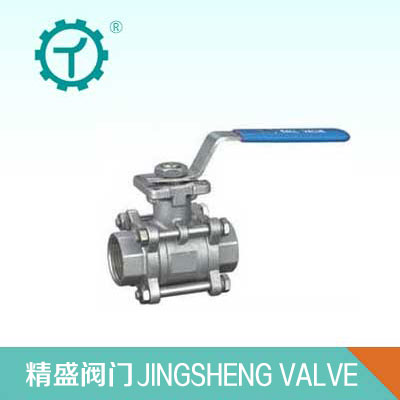

DN | G | d | L | H | W |
8 | 1/4" | 10 | 65 | 50 | 90 |
10 | 3/8" | 12 | 65 | 50 | 90 |
15 | 1/2" | 15 | 70/75/61 | 55 | 100 |
20 | 3/4" | 20 | 80/80/69 | 60 | 120 |
25 | 1" | 25 | 90/90/80 | 70 | 140 |
32 | 1¼" | 32 | 110/110/96 | 82 | 140 |
40 | 1½" | 38 | 120/120/104 | 90 | 180 |
50 | 2" | 50 | 140/140/125 | 105 | 200 |
65 | 2½" | 64 | 160/185 | 120 | 220 |
80 | 3" | 78 | 180/205 | 132 | 240 |
100 | 4" | 100 | 215/240 | 160 | 300 |
主要零件材料：
零件名称 | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R |
阀体Body | WCB | ZG1Cr18Ni9i | ZG1Cr18Ni12Mo2Ti |
球体Ball | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
阀杆Stem | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
密封圈Sealring | 聚四氟乙烯Polytetrafluorethylene(PTEE) | ||
填料Packing | 聚四氟乙烯Polytetrafluorethylene(PTEE) | ||
